countersunk rivets work by being installed into a countersunk or dimpled hole so their heads sit flush with the material surface, providing a smooth finish and strong joint. Proper preparation of the hole, correct rivet length, and careful riveting technique are essential for effective use of countersunk rivets.

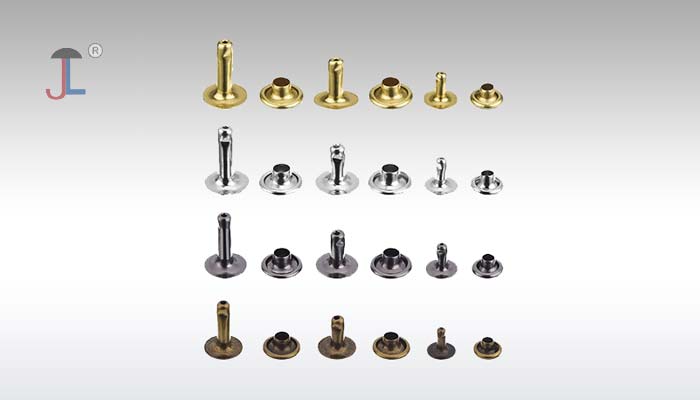

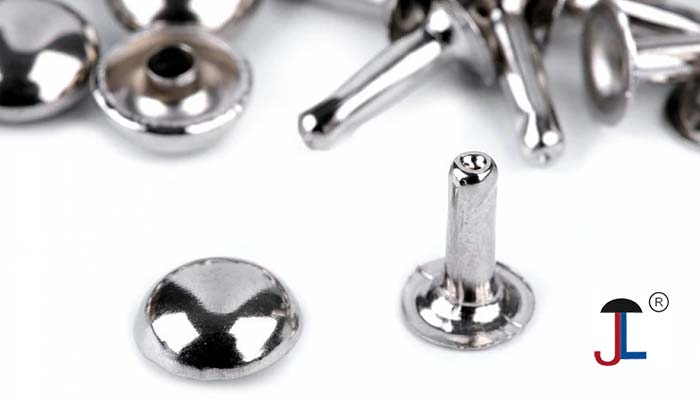

A double-cap rivet is a fastener that secures materials together, featuring a cap on both ends of the rivet, providing a finished appearance on both sides of the project. It consists of two pieces: a cap with a post and a second connecting cap.

To install double cap rivets, first punch a hole through the materials you want to join. Then, insert the post side of the rivet through the hole from the back, place the cap over the post from the front, and use a rivet setter and hammer to firmly press them together. Make sure both sides are aligned properly before setting to ensure a clean and secure finish. This method works well for leather, fabric, or other craft materials.

Single cap rivets have a single cap on one end of the rivet, while double cap rivets have a cap on both ends. Single cap rivets are often used where only one side of the rivet needs to be finished, like on belts or trunks, while double cap rivets provide a finished look on both sides, making them suitable for applications like tote straps or backpacks.

A single cap rivet is a type of rivet that only has a cap on one end, typically used when one side of the rivet is visible. It consists of a post or shank and a single cap, which is typically set on one end of the rivet. These rivets are often used for fastening materials together, decorative accents, or when only one side of the rivet is accessible.

To use single cap rivets, you'll need the rivet, a setting tool (like a snap setting tool or a rivet setter), and a hard surface like an anvil. First, punch a hole slightly larger than the rivet post. Then, insert the post through the hole and snap the cap onto the post. Place the rivet on the anvil and use the setting tool to press or tap the cap down, securing it.

Yes, a tubular rivet labeled "M4" generally has a diameter of 4mm. The "M4" designation refers to the nominal shank diameter of the rivet. While the M4 designation indicates a shank diameter of 4mm, the overall rivet diameter, including the head, may be larger.

a 10mm double cap rivet is suitable for materials with a thickness between 5mm and 7mm, allowing for a 3mm (⅛ inch) allowance for post setting. Remember to choose high-quality rivets and utilize the correct installation techniques for optimal results.

Double cap rivets are best viewed as moderate‐strength, decorative/functional fasteners—great for leather goods, thin‐gauge sheet work, and light‐duty industrial panels.
Double cap rivets shear strength (with steel variants) typically ranges from 100 to 300 lbf (≈445–1335 N) for common 5 mm sizes; tensile (pull‐through) strength often lies in the 30–150 lbf (≈130–670 N) window, depending on material.

Capped tubular rivets secure materials by expanding a hollow shank (the "post") at one end, creating a mushroom-like shape on the back. This mushroom shape, or "peen," secures the rivet by spreading out the post and digging into the material. Tubular rivets can be installed with or without a cap, with the "splash" setter option providing a flower-petal-like peen without a cap.
capped tubular rivets work by deforming their hollow post through applied force, creating an expanded end that mechanically locks the joined materials together.

Semi-tubular rivets are easy-to-install, permanent fasteners used in various applications. They have a partial hole at one end that allows them to be flared or rolled outward, forming a secure joint with less force than solid rivets. Installation methods range from manual tools like a rivet setter and hammer or a manual squeezer for small projects, to specialized riveting machines for high-volume production. Key to successful installation are selecting the correct rivet size (diameter and length), ensuring proper hole size, and adequately supporting the rivet head during the clinching process.

The key difference between a hollow rivet (also known as a tubular rivet) and an eyelet lies in their purpose and how they're used. A hollow rivet is primarily designed for joining materials, often with a hollow shaft that expands to grip the materials being joined. An eyelet, on the other hand, is a reinforcing piece that creates a stronger, reinforced hole, often for passing items like strings or loops through.

On semi-tubular rivets, the grip range refers to the thickness of the material or the depth that the rivet can effectively hold together. It's the range of material thickness the rivet is designed to join, and it's crucial for proper installation and the strength of the joint. The grip range is not the same as the rivet's length.

The main difference between tubular and semi-tubular rivets lies in the depth of their hollow portion. Tubular rivets have a shank hole depth that is at least 112% of the shank diameter, while semi-tubular rivets have a shank hole depth of less than 112% of the shank diameter. Both types are used to join materials together, but the deeper hollow in tubular rivets may offer advantages in specific applications.

Double cap rivets work by fastening two pieces of material together using two metal caps that interlock through a post. They consist of two parts: a male side with a post and a female cap. The post is inserted through holes punched in the materials to be joined, and then the female cap is pressed onto the post. When force is applied during setting, the end of the post deforms and expands inside the female cap, creating a strong mechanical lock that holds the materials securely together.

For a 3/16 inch (4.8 mm) rivet, the recommended hole size is between 4.9 and 5.0 mm (0.192 - 0.196 inch). This provides a slight clearance for proper rivet expansion and seating.

Standard rivets are generally not watertight and can allow moisture to penetrate through the gaps around the rivet. However, specifically designed sealed or closed-end rivets are engineered for watertight applications. These rivets have a closed end that creates a seal, preventing liquid or vapor from passing through.

There are several types of rivets, broadly classified into four main categories: solid rivets, blind rivets, tubular rivets, and split rivets. Beyond these primary types, there are variations and specialized rivets within each category, such as flush rivets, drive rivets, and self-piercing rivets.

To choose the right rivet, consider the materials being joined, the required strength, and the grip range (the total thickness of the joined materials). The rivet's diameter should be roughly one-quarter of the combined thickness of the materials being joined, and the rivet's length should be greater than or equal to the total material thickness plus 1.5 times the rivet diameter.
