Stainless Steel Rivets

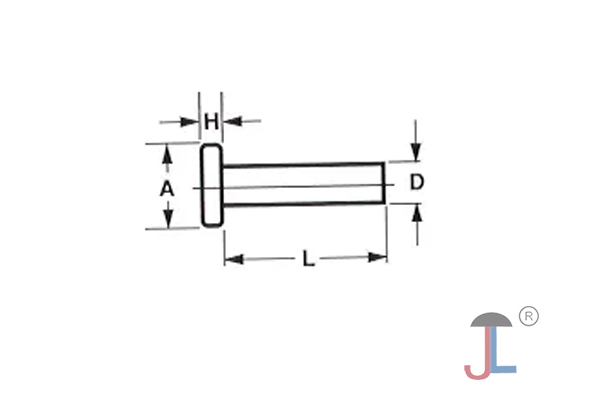

Nominal Diameter (D)	Shank Diameter (mm)	Head Diameter (mm)	Head Height (mm)	Available Lengths (mm)
1/16" (1.6 mm)	1.6	3.0 – 3.5	0.8 – 1.0	4 – 10
3/32" (2.4 mm)	2.4	4.5 – 5.0	1.0 – 1.2	4 – 12
1/8" (3.2 mm)	3.2	6.0 – 6.5	1.2 – 1.6	4 – 16
5/32" (4.0 mm)	4.0	7.5 – 8.0	1.5 – 1.8	6 – 20
3/16" (4.8 mm)	4.8	9.0 – 9.5	1.6 – 2.0	8 – 25
1/4" (6.4 mm)	6.4	12.0 – 12.5	2.0 – 2.5	10 – 30

Rivet Diameter (D)	Rivet Length (L)	Head Diameter (H)	Head Height (T)	Grip Range	Drill Size
1/8" (3.2 mm)	1/4" – 3/4" (6.4 – 19.0 mm)	0.236" (6.0 mm)	0.043" (1.1 mm)	0.063" – 0.375" (1.6 – 9.5 mm)	#30 (3.3 mm)
5/32" (4.0 mm)	1/4" – 3/4" (6.4 – 19.0 mm)	0.315" (8.0 mm)	0.051" (1.3 mm)	0.063" – 0.500" (1.6 – 12.7 mm)	#21 (4.1 mm)
3/16" (4.8 mm)	1/4" – 1" (6.4 – 25.4 mm)	0.354" (9.0 mm)	0.059" (1.5 mm)	0.063" – 0.625" (1.6 – 15.9 mm)	#11 (4.9 mm)
1/4" (6.4 mm)	3/8" – 1-1/4" (9.5 – 31.8 mm)	0.472" (12.0 mm)	0.075" (1.9 mm)	0.125" – 0.875" (3.2 – 22.2 mm)	1/4" (6.5 mm)

Rivet Diameter (D)	Head Diameter (dk)	Head Height (k)	Length Range (L)	Typical Drill Size
1/16" (1.6 mm)	0.122" (3.1 mm)	0.024" (0.6 mm)	1/8"–1/4" (3–6 mm)	#52 (1.6 mm)
3/32" (2.4 mm)	0.183" (4.6 mm)	0.029" (0.7 mm)	1/8"–3/8" (3–10 mm)	#41 (2.4 mm)
1/8" (3.2 mm)	0.244" (6.2 mm)	0.037" (0.9 mm)	1/4"–1/2" (6–13 mm)	#30 (3.3 mm)
5/32" (4.0 mm)	0.305" (7.8 mm)	0.043" (1.1 mm)	1/4"–5/8" (6–16 mm)	#21 (4.1 mm)
3/16" (4.8 mm)	0.366" (9.3 mm)	0.050" (1.3 mm)	1/4"–3/4" (6–19 mm)	#11 (4.9 mm)
1/4" (6.4 mm)	0.488" (12.4 mm)	0.067" (1.7 mm)	3/8"–1" (10–25 mm)	F (6.5 mm)
5/16" (8.0 mm)	0.610" (15.5 mm)	0.080" (2.0 mm)	1/2"–1-1/4" (13–32 mm)	O (8.0 mm)
3/8" (9.5 mm)	0.732" (18.6 mm)	0.094" (2.4 mm)	5/8"–1-1/2" (16–38 mm)	U (9.5 mm)

Rivet Diameter	Rivet Diameter (inch)	Grip Range (mm)	Grip Range (inch)	Rivet Length (L, mm)	Rivet Length (L, inch)	Head Diameter (dk, mm)	Head Diameter (dk, inch)	Head Height (k, mm)	Head Height (k, inch)
3.2 mm	1/8"	1.0 – 6.0	0.04 – 0.24	6 – 12	0.24 – 0.47	8.0 – 8.5	0.31 – 0.33	1.5 – 1.7	0.06 – 0.07
4.0 mm	5/32"	1.0 – 8.0	0.04 – 0.31	8 – 16	0.31 – 0.63	10.0 – 10.5	0.39 – 0.41	1.8 – 2.0	0.07 – 0.08
4.8 mm	3/16"	1.5 – 9.5	0.06 – 0.37	8 – 20	0.31 – 0.79	12.0 – 12.5	0.47 – 0.49	2.0 – 2.2	0.08 – 0.09
6.4 mm	1/4"	2.0 – 12.0	0.08 – 0.47	10 – 25	0.39 – 0.98	16.0 – 16.5	0.63 – 0.65	2.5 – 2.7	0.10 – 0.11
8.0 mm	5/16"	3.0 – 15.0	0.12 – 0.59	12 – 30	0.47 – 1.18	20.0 – 20.5	0.79 – 0.81	3.0 – 3.2	0.12 – 0.13

Diameter (mm)	Head Diameter (mm)	Head Height (mm)	Grip Range (mm)	Length (mm)
2.0	4.0	1.2	1.0 – 3.0	6, 8, 10
2.5	5.0	1.5	1.0 – 4.0	8, 10, 12
3.0	6.0	1.8	1.0 – 5.0	10, 12, 14
3.2	6.5	1.9	1.0 – 6.0	12, 14, 16
4.0	8.0	2.0	2.0 – 8.0	16, 18, 20
4.8	9.6	2.3	3.0 – 9.0	20, 22, 25
5.0	10.0	2.5	3.0 – 10.0	22, 25, 28
6.0	12.0	3.0	4.0 – 12.0	25, 28, 30

Rivet Diameter (D)	Rivet Length (L)	Grip Range	Head Diameter (Dh)	Head Height (H)
2.4 mm	6 mm	1–3 mm	4.8 mm	1.0 mm
3.0 mm	6 mm	2–4 mm	6.0 mm	1.2 mm
3.2 mm	8 mm	3–5 mm	6.4 mm	1.3 mm
4.0 mm	10 mm	4–6 mm	8.0 mm	1.6 mm
4.8 mm	12 mm	5–8 mm	9.6 mm	1.9 mm
5.0 mm	14 mm	6–10 mm	10.0 mm	2.0 mm
6.0 mm	16 mm	8–12 mm	12.0 mm	2.4 mm

Applications

ss rivets are widely used across industries such as furniture,home decor,leather goods,fashion accessories,clothing,construction,automotive,aerospace,electronics,
mechanical assemblies,industrial equipment manufacturing,appliance and hardware industries.

Videos

Why JiLiang Stainless Steel Rivets

Custom Design Solutions

We offer professional OEM services, supporting processing based on customer-provided drawings and samples. Our engineering team ensures each stainless steel rivet is precisely manufactured to meet exact specifications.

Premium Material Selection

We source only the highest-grade stainless steel alloys, ensuring that our rivets provide unparalleled strength, corrosion resistance, and longevity. This commitment to material excellence gives our products a distinct edge in reliability and durability.

Advanced Manufacturing Process

Utilizing cutting-edge manufacturing techniques and stringent quality control processes, we ensure that each ss rivets is crafted to the highest standards, guaranteeing exceptional precision, consistency, and performance in every batch.

Comprehensive Customer Support and Service

Our company offers comprehensive technical support, from product selection to after-sales assistance. We work closely with customers to provide expert guidance, ensuring that our rivets meet specific operational requirements and exceed expectations in performance.

Buy Stainless Steel Rivets in Bulk & Save!

We offer competitive wholesale pricing for bulk orders of Stainless Steel Rivets. Get custom sizes and specifications tailored to your needs.

GET A QUOTE

📞 Need assistance? Call us at [+8616676517879] or email [sales5@jiliang988.com].

Buyer Requirements

With 17 years of professional experience, JiLiang is a leading manufacturer of Stainless Steel Rivets. Our highly qualified team provides full pre-sales and post-sales services.

Order Placement

Please contact customer service to confirm stock availability, verify the shipping address, and discuss shipping details. Ensure that the delivery information is complete and accurate.

Shipping

Once payment is successfully received, we will arrange prompt shipping. In case of special circumstances, the actual shipping time will be based on the mutually agreed schedule.

Receipt of Goods

Please carefully inspect the goods before signing for receipt. If there are any issues, contact customer service on the day of delivery. Returns or exchanges are not accepted for non-quality-related issues.

After-Sales Service

All products undergo rigorous quality inspections before shipment. Minor imperfections that do not affect functionality are not considered quality defects. We appreciate your understanding.

FAQs

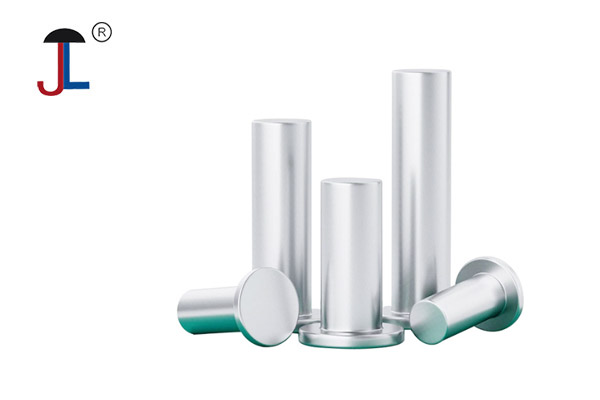

What is a solid rivet

A solid rivet is a permanent fastener used to join materials, typically metal, by inserting a cylindrical shaft through a hole and deforming the protruding end to form a second head. Commonly used in industries like aerospace and construction, solid rivets are known for their strength and durability in high-stress environments. View More

What is better ss rivets or aluminum rivets

Stainless steel (ss) rivets are stronger, more durable, and highly corrosion-resistant, making them ideal for heavy-duty and outdoor applications. However, they are heavier and more expensive than aluminum rivets. On the other hand, aluminum rivets are lightweight, cost-effective, and corrosion-resistant but not as strong as stainless steel. They are suitable for lighter, less demanding tasks. The choice between the two depends on factors such as strength requirements, weight, cost, and the environment in which the rivets will be used. View More

What is the difference between solid and blind rivets

Solid rivets require access to both sides for installation and are typically stronger, making them ideal for high-stress applications. Blind rivets, on the other hand, can be installed from one side only, making them more versatile for situations with limited access. Blind rivets consist of a hollow body and a mandrel, which breaks off after installation, while solid rivets are a single piece of material deformed to create a permanent bond. View More

Can i use stainless steel rivets on aluminum

Yes,stainless steel rivets can be used on aluminum, but it's important to consider the risk of galvanic corrosion due to the differing electrochemical properties of the two metals, especially in moist or corrosive environments. To prevent corrosion, protective coatings or alternative rivet materials like aluminum may be necessary. Additionally, ensure the rivets meet the required mechanical strength for your application. View More

How to remove stainless steel rivets

To remove stainless steel rivets, start by wearing safety goggles and gloves. Use a drill with a metal bit slightly larger than the rivet shaft to remove the rivet head. If necessary, mark the center of the rivet with a center punch for precision. Once the head is drilled off, use pliers or a punch to remove the remaining rivet shaft. Clean up any debris and smooth the surface if needed.

View More

How much weight can a stainless steel rivet hold

The strength of a stainless steel rivet, whether blind or otherwise, depends on its size and the type of rivet (e.g., tensile or shear strength). For example, a 1/8" stainless steel blind rivet can hold approximately 530 lbs in tensile strength and 420 lbs in shear strength. View More

When should I use stainless steel rivets instead of brass rivets

Choose stainless steel rivets for applications requiring high strength, durability, and corrosion resistance.choose brass rivets for electrical applications or decorative purposes where moderate strength is sufficient.

Check out our full range of brass rivet here.

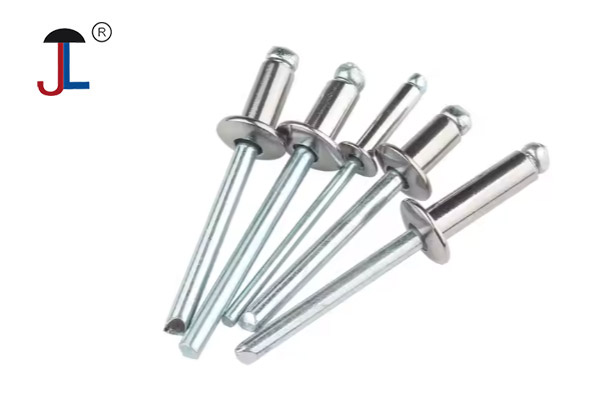

What tool to use to set stainless steel pop rivet

A pop rivet tool (often called a rivet gun or pop riveter) is the proper tool for setting stainless steel pop rivets. These tools are designed to pull the mandrel out of the rivet, expanding the body and locking it in place. For tougher materials like stainless steel, you might consider a heavy-duty manual or pneumatic model to ensure a secure set.
