Semi Tubular Rivets

Applications

Semi-tubular rivets used in aerospace,light fixtures, electronics, automotive parts, boats and furniture, often for pivot points or piercing soft materials like leather.

Videos

Why Choose Our Semi Tubular Rivets

Superior Material Quality

Manufactured from premium-grade stainless steel,brass and aluminum, our semi tubular rivets ensure consistent strength and corrosion resistance for demanding industrial applications.

Precision Engineering

Utilizing advanced CNC tooling and strict quality control, each rivet is formed to exact specifications, guaranteeing reliable installation and uniform performance.

Cost-Effective Solutions

Competitive pricing combined with optimized production processes enables you to reduce overall assembly costs without compromising on durability or safety.

Customizable Options & OEM Support

Available in a range of head styles, diameters, and lengths, we tailor rivets to meet your exact requirements—whether standard stock or specialized dimensions.

Fast Lead Times

With efficient supply chain management and ample inventory, we deliver on short notice, minimizing project delays and keeping your production on schedule.

Technical Support & Service

Our experienced engineering team is ready to assist with product selection, application guidance, and post–purchase support, ensuring seamless integration into your manufacturing process.

FAQs

What is a semi-tubular rivet

A semi-tubular rivet is a type of rivet with a partially hollow end, which makes it easier to install compared to solid rivets. The hollow end deforms during the riveting process, securing the rivet in place without requiring high shear strength. Semi-tubular rivets are commonly used in industries like manufacturing, automotive, and electronics for joining thin materials, offering advantages like simplicity, cost-effectiveness, and ease of installation. View More

What is the difference between solid and tubular rivets

Solid rivets are made from a single piece of metal, providing high strength and durability, while tubular rivets have a hollow design, making them lighter and easier to install but with slightly lower load capacity. Solid rivets require heating and hammering or pressing for installation, making them ideal for high-stress applications like aerospace and construction. In contrast, tubular rivets are compressed using a setting tool, making them suitable for lighter applications such as automotive panels and electronics. The choice between them depends on strength requirements, weight considerations, and installation ease. View More

Difference between tubular and semi tubular rivets

The main difference between tubular and semi-tubular rivets lies in the depth of their hollow portion. Tubular rivets have a shank hole depth that is at least 112% of the shank diameter, while semi-tubular rivets have a shank hole depth of less than 112% of the shank diameter. Both types are used to join materials together, but the deeper hollow in tubular rivets may offer advantages in specific applications. View More

What does grip range on semi tubular rivet mean

On semi-tubular rivets, the grip range refers to the thickness of the material or the depth that the rivet can effectively hold together. It's the range of material thickness the rivet is designed to join, and it's crucial for proper installation and the strength of the joint. The grip range is not the same as the rivet's length. View More

Semi-Tubular Rivets vs.Other Fasteners

Feature	Semi-Tubular Rivets	Solid Rivets	Blind (Pop) Rivets	Bolts & Nuts
Installation Access	One-sided (backside accessible)	Two-sided (requires bucking bar)	One-sided (blind side not accessible)	Two-sided (requires wrench access)
Installation Force	Moderate (due to hollow end)	High (full deformation required)	Moderate (mandrel pull required)	Low to moderate (torque dependent)
Joint Strength	Good shear & tensile (80%–90% of solid)	Very high	Moderate (mandrel weakness)	Very high (threaded engagement)
Cost per Fastener	Low to medium	Medium to high	Medium	High (including washers, nuts)
Weight	Lightweight (hollow portion reduces mass)	Heavy (solid material)	Medium	Heavy (nut and bolt assembly)
Reusability	Generally non-reusable	Non-reusable	Non-reusable (mandrel breaks)	Reusable
Appearance (Post-Install)	Smooth, low-profile possible, flush options	Visible domed heads	Mandrel protrusion (can be trimmed)	Nuts & rotated hardware visible
Vibration Resistance	Good (interference fit)	Excellent	Good (depending on application)	Excellent (when properly torqued)
Blind-Side Flushing	No (backsides)	No	Yes (bulb on blind side)	No

What is the difference between a hollow rivet and an eyelet

The key difference between a hollow rivet (also known as a tubular rivet) and an eyelet lies in their purpose and how they're used. A hollow rivet is primarily designed for joining materials, often with a hollow shaft that expands to grip the materials being joined. An eyelet, on the other hand, is a reinforcing piece that creates a stronger, reinforced hole, often for passing items like strings or loops through. View More

How to install semi tubular rivets

Semi-tubular rivets are easy-to-install, permanent fasteners used in various applications. They have a partial hole at one end that allows them to be flared or rolled outward, forming a secure joint with less force than solid rivets. Installation methods range from manual tools like a rivet setter and hammer or a manual squeezer for small projects, to specialized riveting machines for high-volume production. Key to successful installation are selecting the correct rivet size (diameter and length), ensuring proper hole size, and adequately supporting the rivet head during the clinching process. View More

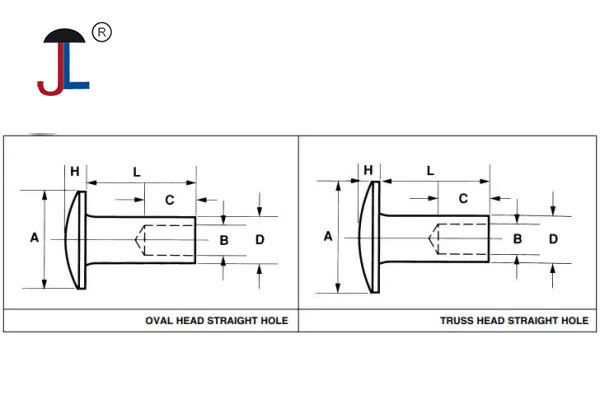

Nom. Shank Diameter	Shank Diameter D		Head Style	Head Diameter A		Head Thickness H		Hole Diameter B		Hole Depth C	Suggested Clinch Allowance	Hole Dia. in Assembly
Nom. Shank Diameter	Min.	Max.	Head Style	Basic	Tol.	Basic	Tol.	Min.	Max	Hole Depth C	Suggested Clinch Allowance	Hole Dia. in Assembly
1/16	0.058	0.061	Oval	0.109	± .005	0.017	± .002	0.039	0.044	0.046	0.040	0.067
1/16	0.058	0.061	Truss	0.125	± .005	0.017	± .002	0.039	0.044	0.046	0.040	0.067
3/32	0.085	0.089	Oval	0.147	± .005	0.023	± .003	0.062	0.068	0.064	0.045	0.093
3/32	0.085	0.089	Truss	0.187	+ .005	0.023	± .003	0.062	0.068	0.064	0.045	0.093
3/32	0.095	0.099	Oval	0.156	± .005	0.023	± .003	0.070	0.076	0.077	0.050	0.100
3/32	0.095	0.099	Truss	0.187	± .005	0.029	± .003	0.070	0.076	0.077	0.050	0.100
1/8	0.118	0.123	Oval	0.218	± .005	0.034	± .004	0.084	0.090	0.094	0.075	0.128
1/8	0.118	0.123	Truss	0.281	± .005	0.034	± .004	0.084	0.090	0.094	0.075	0.128
9/64	0.141	0.146	Oval	0.234	± .005	0.040	± .005	0.100	0.107	0.126	0.092	0.152
9/64	0.141	0.146	Truss	0.312	± .006	0.040	± .005	0.100	0.107	0.126	0.092	0.152
5/32	0.151	0.156	Oval	0.312	±..006	0.046	±..005	0.110	0.117	0.155	0.096	0.165
5/32	0.151	0.156	Truss	0.328	± .006	0.046	± .005	0.110	0.117	0.155	0.096	0.165
3/16	0.182	0.188	Oval	0.312	±..006	0.060	±..005	0.134	0.141	0.155	0.120	0.196
3/16	0.182	0.188	Truss	0.375	±..006	0.060	±..005	0.134	0.141	0.155	0.120	0.196
1/4	0.244	0.252	Oval	0.437	± .007	0.068	± .007	0.176	0.184	0.219	0.157	0.265
1/4	0.244	0.252	Truss	0.500	± .007	0.078	± .007	0.176	0.184	0.219	0.157	0.265
5/16	0.302	0.310	Oval	0.500	± .008	0.093	± .007	0.211	0.219	0.243	0.188	0.328
5/16	0.302	0.310	Truss	0.562	± .008	0.093	± .007	0.211	0.219	0.243	0.188	0.328
3/8	0.370	0.380	Oval	0.500	± .008	0.125	± .007	0.276	0.286	0.281	0.219	0.390
3/8	0.370	0.380	Truss	0.750	± .010	0.156	± .007	0.276	0.286	0.281	0.219	0.390
Note: Special Sizes or Tolerances Quoted upon request.

Advantages of Semi-Tubular Rivets

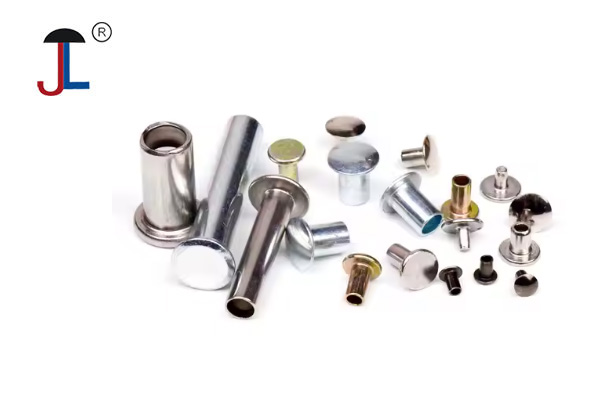

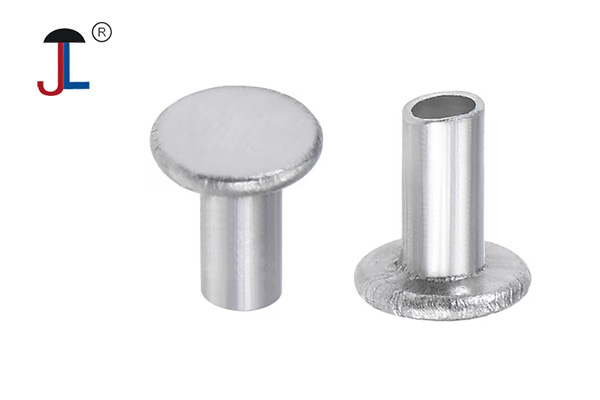

Aluminium Semi Tubular Rivets

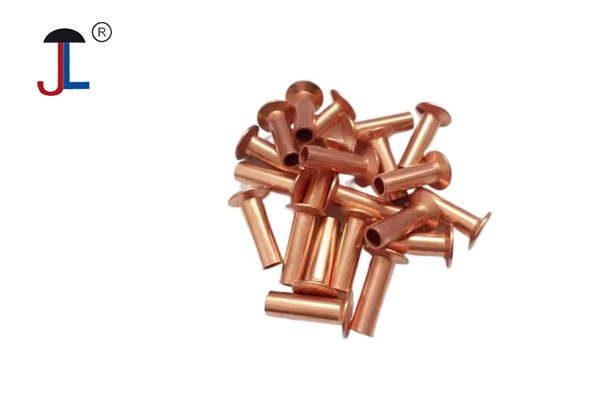

Brass Semi Tubular Rivets

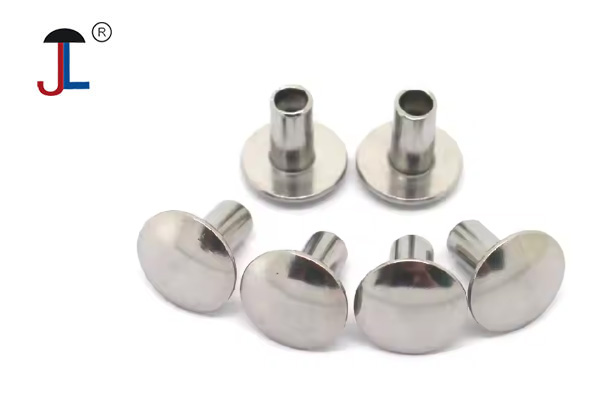

Stainless Steel Semi Tubular Rivets
