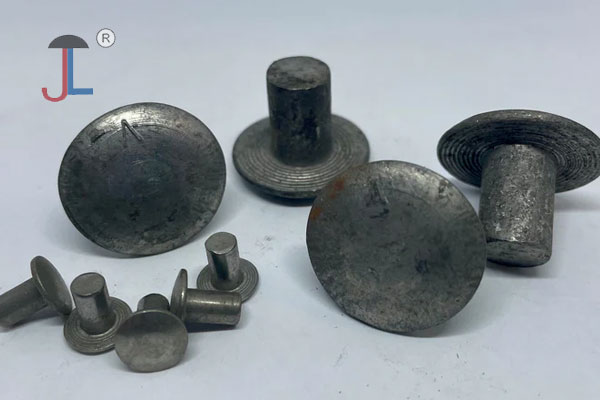

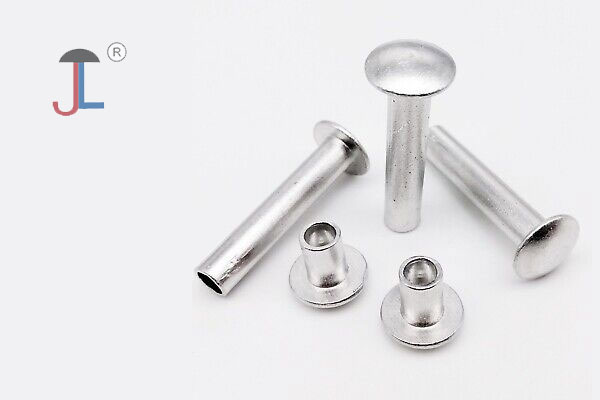

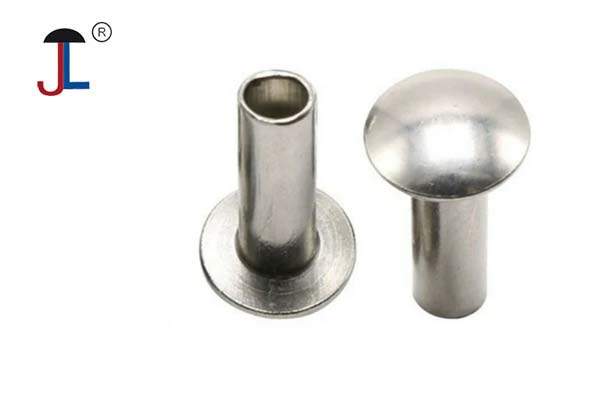

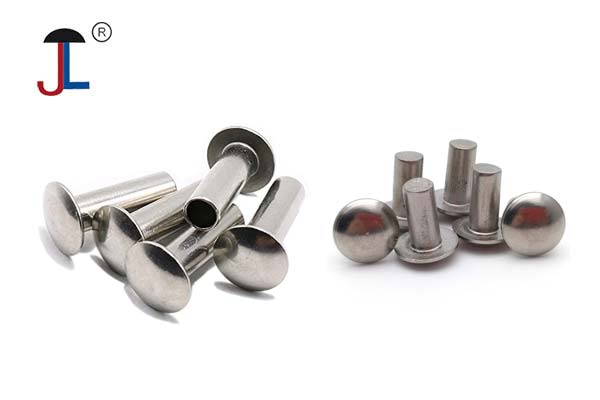

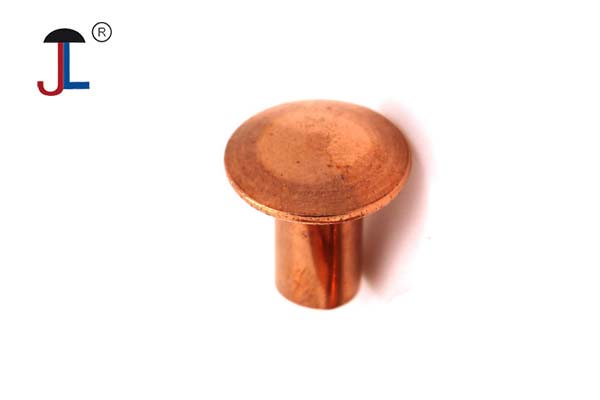

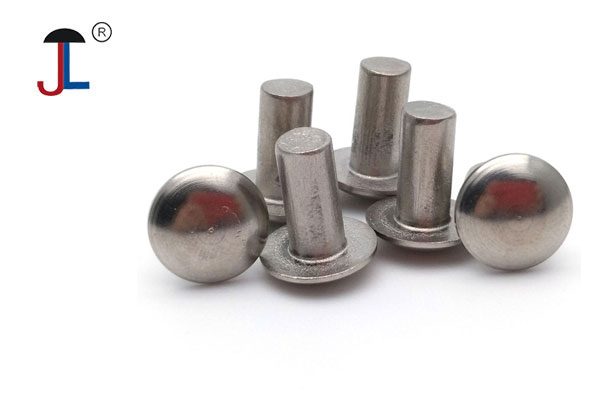

As a trusted manufacturer with 17 years of experience, we specialize in producing a wide range of truss head rivet, including truss head semi tubular rivets, tubular rivets, aluminum truss head rivets, solid copper truss head rivets, stainless steel truss head rivets, and solid steel truss head rivets. With comprehensive customization services—covering materials, dimensions, finishes, and packaging—we provide reliable fastening solutions tailored to meet the unique needs of various industries worldwide.
Our truss head rivet are available in a comprehensive range of sizes, materials, and specifications to meet your exact requirements. Below is our standard sizing chart, but custom options are available upon request.
| Nominal Diameter | Head Diameter (max) | Head Height (max) | Hole Diameter (max) |
|---|---|---|---|
| 1/16" (0.061") | 0.130" | 0.019" | 0.044" |
| 3/32" (0.089") | 0.152" | 0.026" | 0.068" |
| 1/8" (0.123") | 0.223"–0.239" | 0.038"–0.045" | 0.090"–0.107" |
| 1/4" (0.252") | 0.444"–0.507" | 0.075"–0.085" | 0.184" |
| 3/8" (0.377") | 0.570"–0.632" | 0.100"–0.125" | 0.286" |
